Function Description
- Bluetooth
- Speed-Activated Locking
- Emergency Stop Unlocking
- Engine Off Unlocking
- Ambient Light
- Welcome Light
- Car Sync
- Center Console Operation
- Driving Ambient Light
- Power Saving Mode

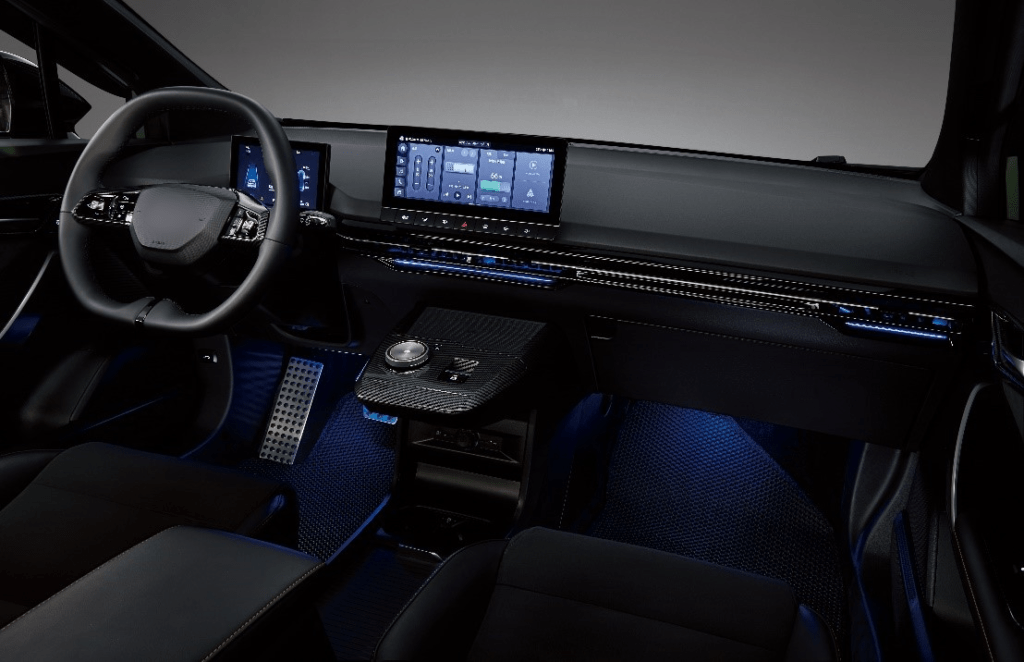

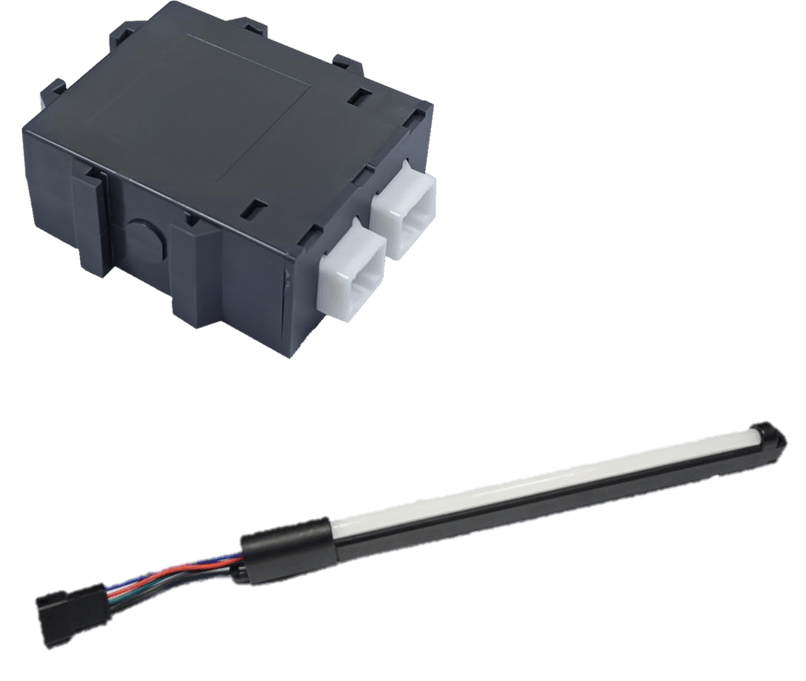

Product Rendering

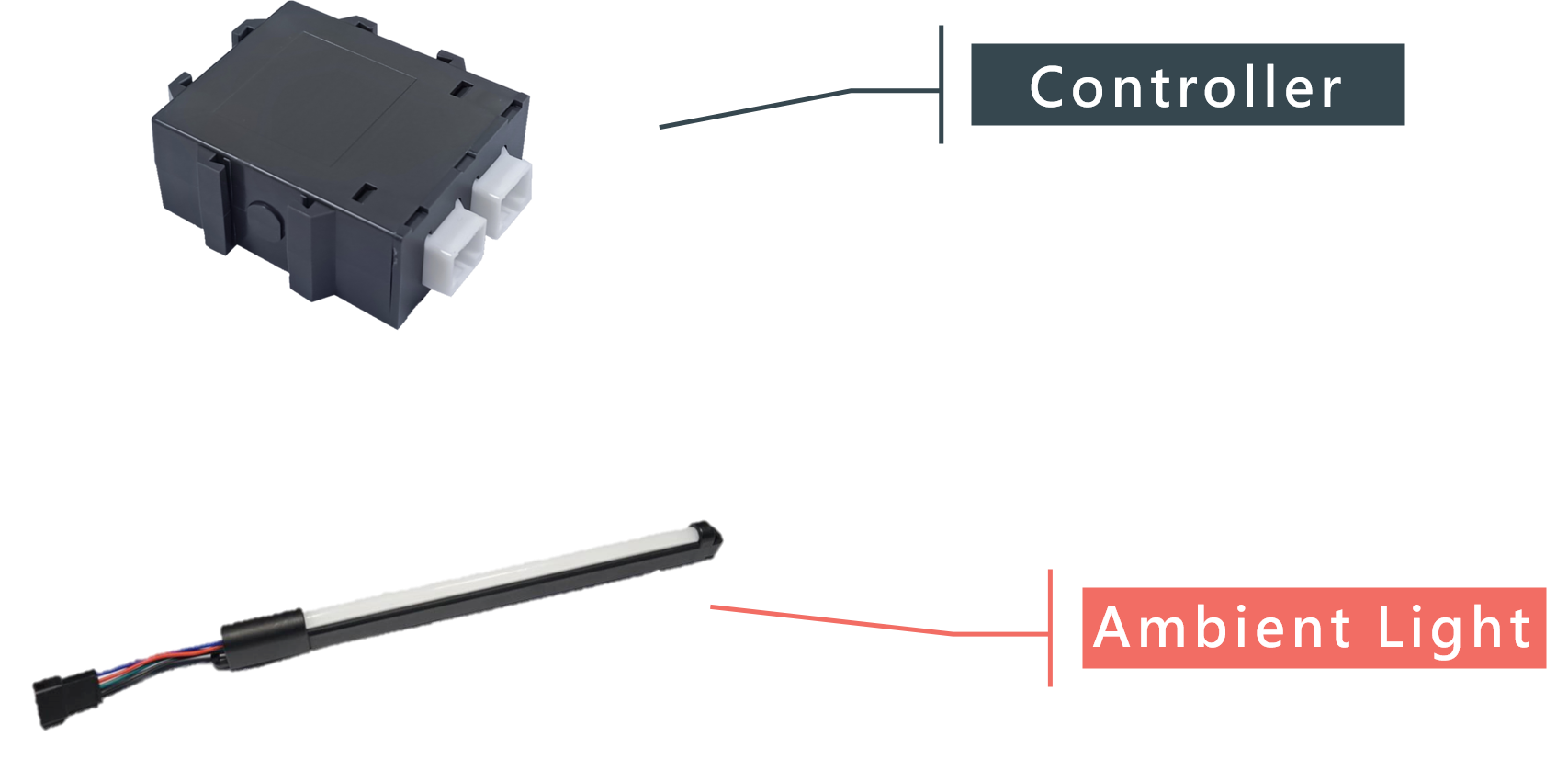

Product Diagram

Function Description
Bluetooth
- If a paired phone leaves the car without locking it via IKEY, the car will automatically lock.
Speed-Activated Locking
- The car will automatically lock when the speed exceeds 25 km/h.
Emergency Stop Unlocking
- If the speed continuously drops by more than 25 km/h within 200ms, and the final speed reaches 0 km/h, the car will automatically unlock.
Engine Off Unlocking
- When the KEY status changes from ON to OFF and the doors are not fully unlocked, the car will automatically unlock.

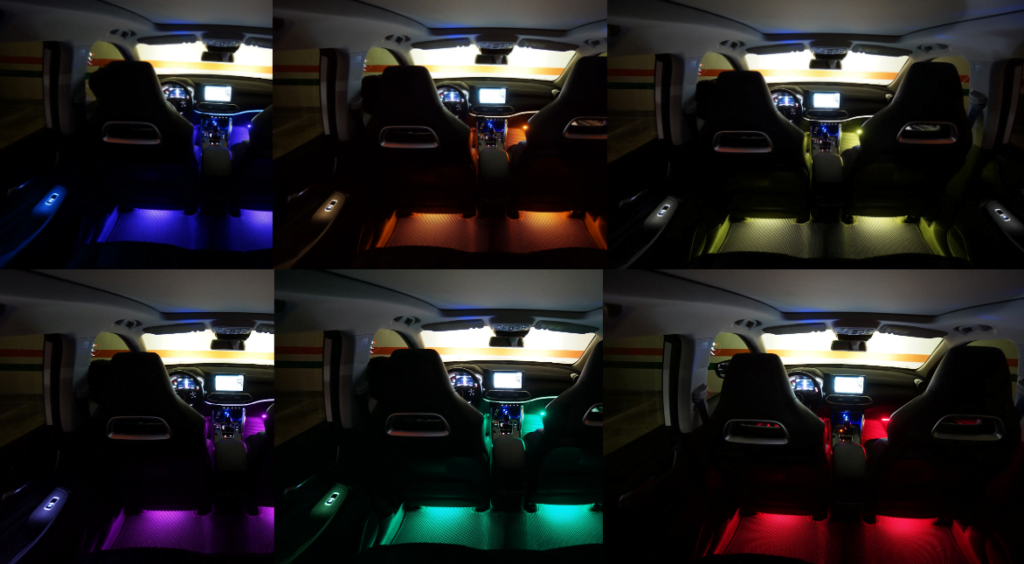

Ambient Light
- Standard mode, breathing mode, and gear-linked mode. It can be adjusted according to customer requirements.
Display
Welcome Light
- When any door of the vehicle is opened, the welcome light automatically displays in multicolor flashing mode until the door is closed.
Display
Car Sync
- Syncs with the car’s gear shift, automatically changing colors when shifting gears.
Display
Center Console Operation
- If your car’s center console has an ambient light control interface, you can switch the ambient light colors via the touchscreen.
Display
Driving Ambient Light
- When the vehicle is in gear D and the speed is >0 km, the dynamic driving ambient light will automatically change colors and can be adjusted according to customer requirements.
Power Saving Mode
- After the vehicle is turned OFF and the doors are locked, the lights will automatically turn off. The system will enter standby sleep mode ( < 1mA) after the vehicle goes to sleep.
Specification
Controller
No. | Item | Specification |
1. | Operating Voltage | 9V ~ 16V |
2. | Operating Current | < 0.1 Ah |
3. | Quiescent Current | < 0.1 mAh |
4. | Operating Temperature | -30°C ~ +85°C |
5. | Storage Temperature | -30°C ~ +85°C |
6. | Power Supply | B+ |
7. | Dimension | 75.6*61.0*28.0 mm |
8. | Weight | 43g ± 3g |
Ambient Light
No. | Item | Specification |
1. | Operating Voltage | 12V |
2. | Operating Current | < 0.16 Ah |
3. | Color Model | RGB |
4. | Operating Temperature | -25°C ~ +65°C |
5. | Storage Temperature | -25°C ~ +85°C |
6. | Dimension | 200.0*11.1*17.3 mm |
7. | Weight | 22g ± 3g |
