Function Description
- Ambient Light
- Welcome Light
- Car Sync
- Center Console Operation

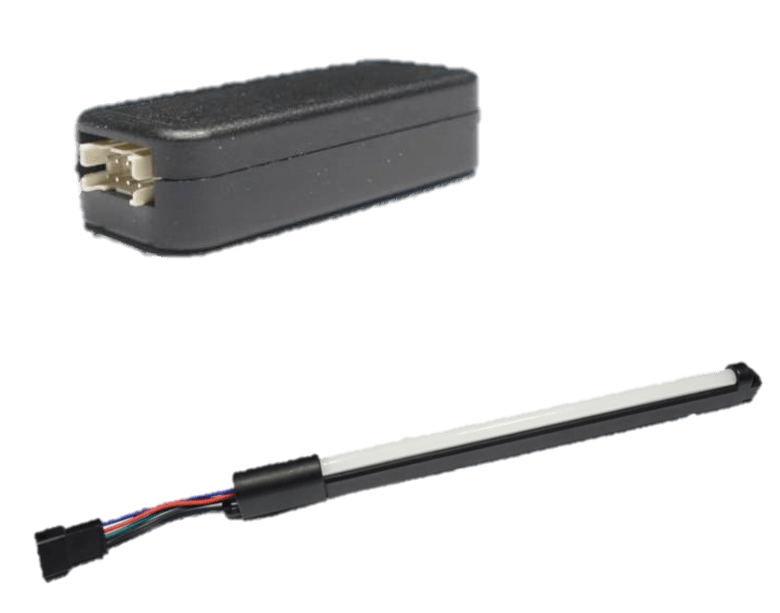

Product Rendering

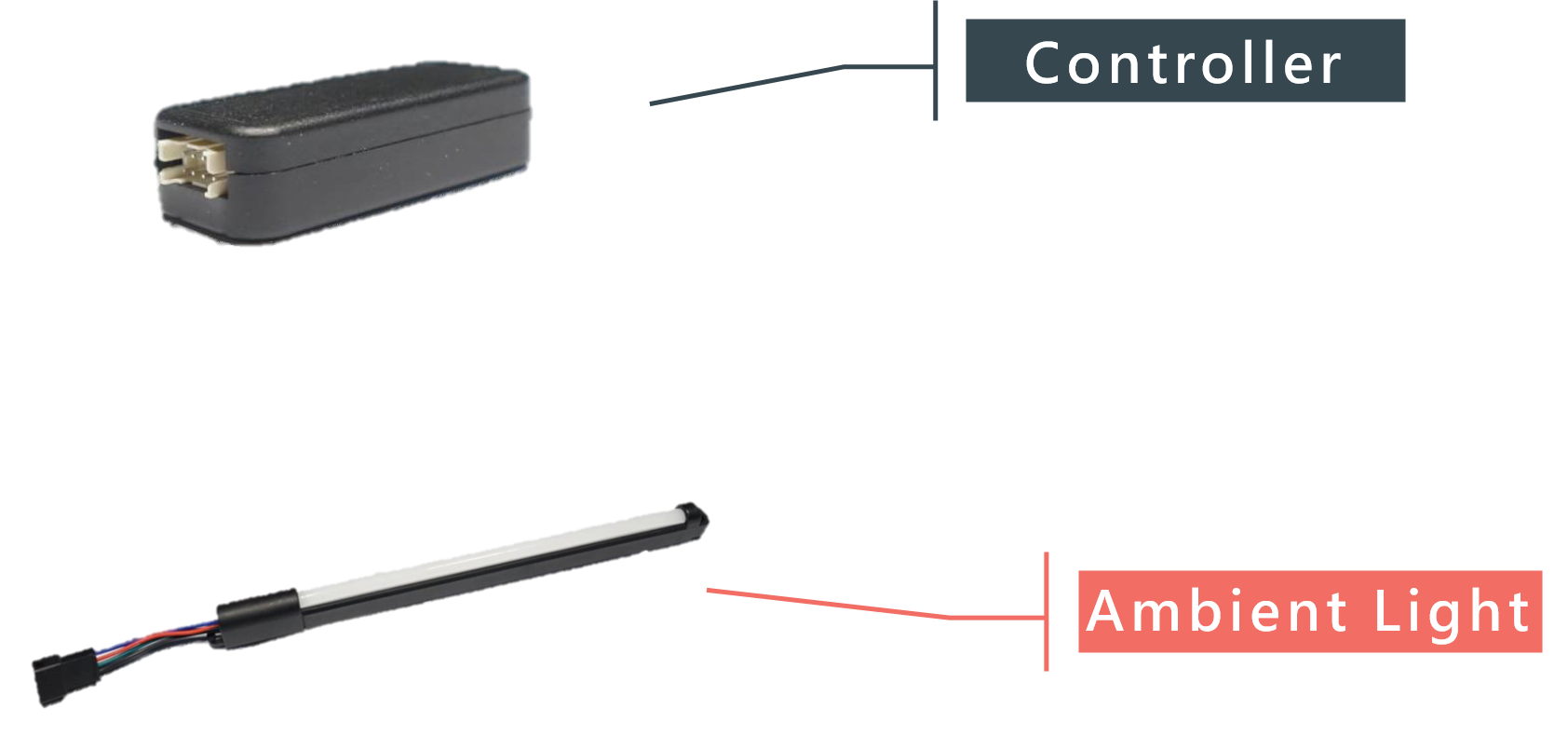

Product Diagram
Function Description
Ambient Light
- Standard mode, breathing mode, and gear-linked mode. It can be adjusted according to customer requirements.
Display
Welcome Light
- When any door of the vehicle is opened, the welcome light automatically displays in multicolor flashing mode until the door is closed.
Display
Car Sync
- Syncs with the car’s gear shift, automatically changing colors when shifting gears.
Display
Center Console Operation
- If your car’s center console has an ambient light control interface, you can switch the ambient light colors via the touchscreen.
Display
Specification
Controller
| No. | Item | Specification |
| 1. | Operating Voltage | DC 10~16V |
| 2. | Operating Current | < 2Ah |
| 3. | Quiescent Current | 0Ah |
| 4. | Operating Temperature | -25°C ~ +85°C |
| 5. | Storage Temperature | -25°C ~ +85°C |
| 6. | Dimension | 52.8*22*13 mm |
| 7. | Weight | 8g ± 3g |
Ambient Light
| No. | Item | Specification |
| 1. | Operating Voltage | 12V |
| 2. | Operating Current | < 0.16 Ah |
| 3. | Color Model | RGB |
| 4. | Operating Temperature | -25°C ~ +65°C |
| 5. | Storage Temperature | -25°C ~ +85°C |
| 6. | Dimension | 200.0*11.1*17.3 mm |
| 7. | Weight | 22g ± 2g |
